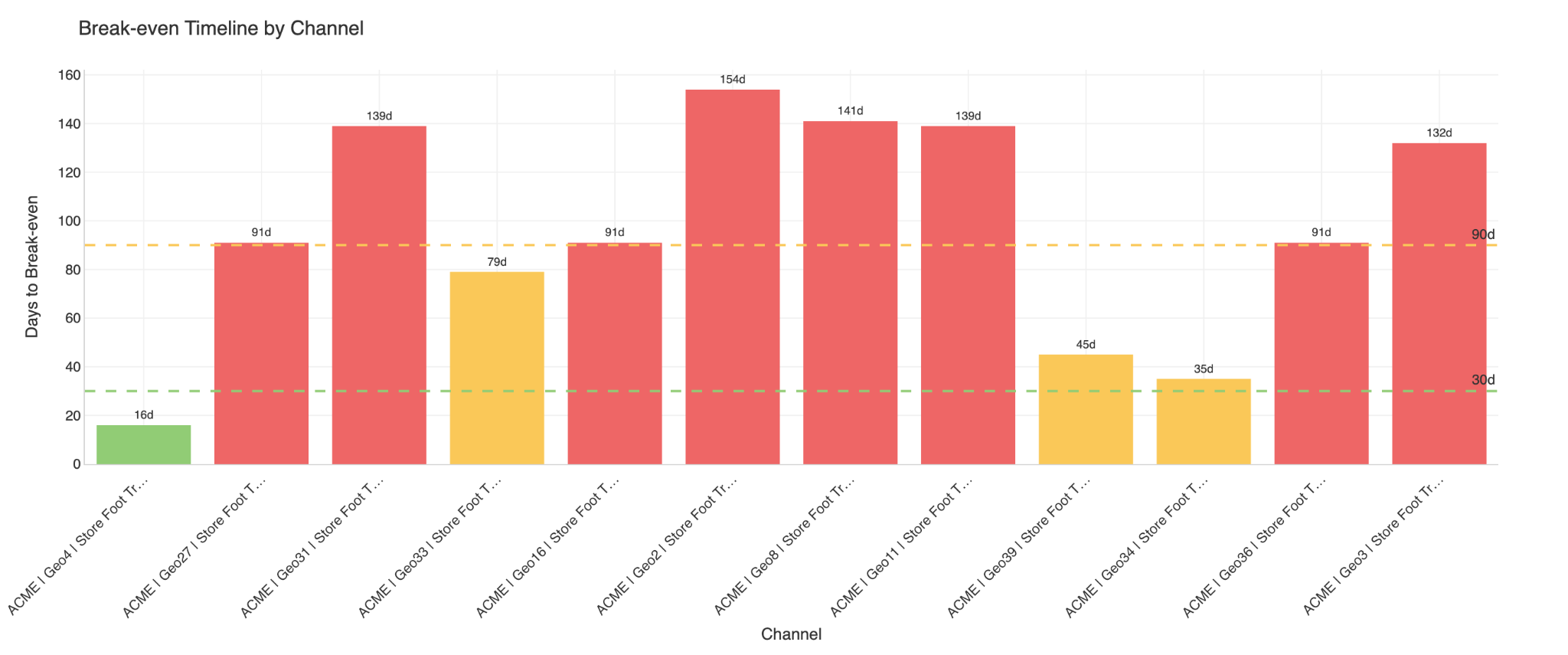

What This Chart Shows
This chart shows how many days it takes for each channel's attributed lift to "pay back" its cost—i.e. the days to break-even per channel. You can see how quickly each channel can become profitable.
Channels are sorted by fastest to break-even (shortest bars first); up to 12 are shown. Bar color bands (e.g. under 30 days, 30–90 days, over 90 days) and reference lines at 30 and 90 days help you separate quick payback from slower recovery.
When cost data is not available (no-costs mode), the chart does not show break-even. Instead it shows a fallback view: “Lift Ranking by Channel”—same layout but bars are lift (KPI units) and the title/axis make clear you’re in no-costs mode. So in costs mode you get an investment recovery timeline; in no-costs mode you get a lift ranking so the slot still gives useful information.
Key Questions This Chart Helps Answer
- Which channels pay back their cost fastest?
- How does break-even timing compare across channels?
- Where should we expect quick vs slow investment recovery?
Axes, Metrics, and Units
Element | Description |
|---|---|
| X-axis | Marketing activity name. Same in both modes. |
| Y-axis (costs mode) | Days to Break-even. Number of days until cumulative attributed lift meets or exceeds cumulative cost. Model-derived from daily lift and cost when available; otherwise a steady-state proxy (cost ÷ lift). |
| Y-axis (no-costs mode) | Lift per Target (KPI Units). Modeled attribution. |
| Bar colors (costs mode) | Green: < 30 days to break-even. Amber: 30–90 days. Red: > 90 days. |
| Bar colors (no-costs mode) | Green / amber / gray by relative lift (top 70%, next 30%, lower). |
| Reference lines (costs mode) | Dashed horizontal lines at 30 days and 90 days with "30d" and "90d" labels. |
| Bar text | Costs: "Xd" (days). No-costs: compact lift value. |
Break-even and lift are modeled. They are not raw accounting payback.
Control Options Reference
Control | Meaning |
|---|---|
| KPI classification / hierarchy / drilldown | Chooses the target KPI and, when applicable, the per-target attribution block for lift (and cost in costs mode). |
| Event categories | Filter by specific event categories (include/exclude). |
| Funnel stages | Filter by specific funnel stages (include/exclude). |
There is no grouping mode; the chart always shows one bar per marketing activity.
How to Interpret the Results
- Shorter bars (fewer days): Channel pays back cost faster; good for cash flow and risk.
- Color: Green (<30d) = fast payback; amber (30–90d) = moderate; red (>90d) = slow. Use with the 30d and 90d lines.
- Channels not shown: In costs mode, only levers with finite break-even days are included. Levers that never break even (e.g. lift too low or zero, or no temporal crossover) are omitted; see caveats for the "no channels break even" message.
- Order: Bars are ordered by ROI magnitude (among those that break even), so the chart surfaces the same high-ROI channels as other ROI views.
- No-costs mode: You see Lift Ranking only—no break-even. Use it for "who has the most lift"; switch to a environment with costs to see break-even timeline.
Practical Applications for Marketers
Application | How to use this chart |
|---|---|
| Payback and cash flow | Prefer channels with fewer days to break-even when liquidity or payback speed matters. |
| Channel mix | Balance fast payback (green) with strategic channels that may be slower (amber/red). |
| Budget and planning | Use 30d/90d as simple benchmarks for "fast" vs "slow" and set expectations with finance. |
| Executive storytelling | "These channels pay back in under 30 days; these take longer." |
| Filter and KPI sensitivity | Change event category, funnel, or KPI and see how break-even and who appears change. |
Common Mistakes & Misinterpretations
Mistake | Why it is a problem | How to avoid |
|---|---|---|
| Treating "days" as calendar days | "Days" here are model time steps (e.g. daily buckets in the attribution window), not necessarily literal calendar days. | Use for relative speed (who is faster/slower); confirm time granularity in your pipeline. |
| Assuming all channels are shown | Only channels with finite break-even are shown; never-break-even channels are omitted. | Check for the "No channels in the selected filter break even" (or similar) message when the list seems short. |
| Ignoring no-costs mode | When costs are missing, the chart is Lift Ranking, not break-even. Title and Y-axis change. | Read the title: "Break-even Timeline by Channel" vs "Lift Ranking by Channel (No Costs Mode)." |
| Comparing across different KPI or filters | Break-even and which channels appear depend on outcome/KPI and filters. | Compare only with the same KPI and filters, or note differences. |
| Treating break-even as a guarantee | Break-even is model-derived from attributed lift and cost; real payback can differ. | Use for direction and relative comparison, not as a guarantee of actual payback. |
Caveats & Considerations
- Costs required for break-even: In no-costs mode, the chart shows Lift Ranking (lift per target by channel), not break-even. No "days to break-even" or 30d/90d lines.
- Filter-empty: If event category or funnel stage leave no levers, the chart shows the standard filter-empty state.
- No channels break even: If, after filtering, no lever has finite break-even days, the chart shows a message such as "No channels in the selected filter break even. (N of J channels break even overall, but none in this filter.)" or "No valid break-even data."
- Top 12: At most 12 channels (with finite break-even) are shown, ordered by ROI magnitude. Others are not in the view.
- 30d / 90d lines: These are reference benchmarks only; they are not computed from your data. Use for quick "fast vs slow" reading.
- Click/drawer: Bars may be clickable for details; behavior depends on the app.
